HV Electric Compressor

Superway HV Electric Compressor For Commercial Vehicle

The industry's first mass production of axial integrated layout EDC

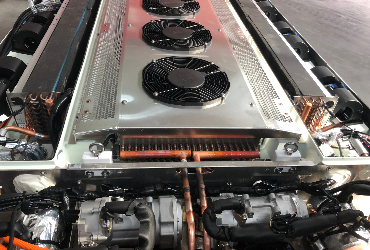

Suitable for bus, refrigeration and battery cooling, etc.

High and low voltage platform:200-450/400-750VDC

Suitable for various refrigerants: R134a/R1234yf/R407C/R404A/R452A/R290

Flexible adaptation: the shell can be rotated, the connector is optional

BTM system
Bus
Heavy Duty Truck
Special Vehicle

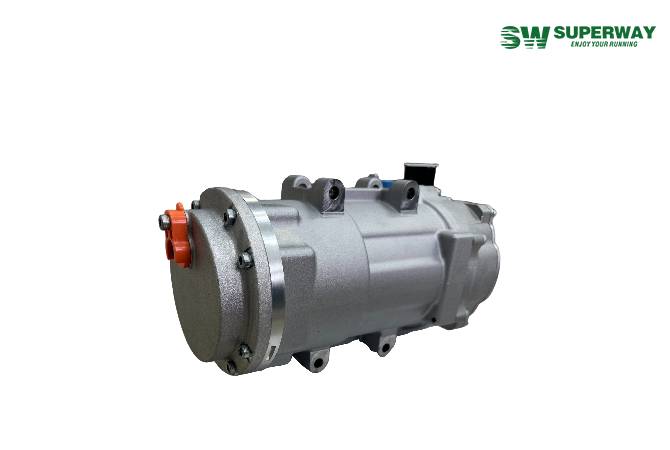

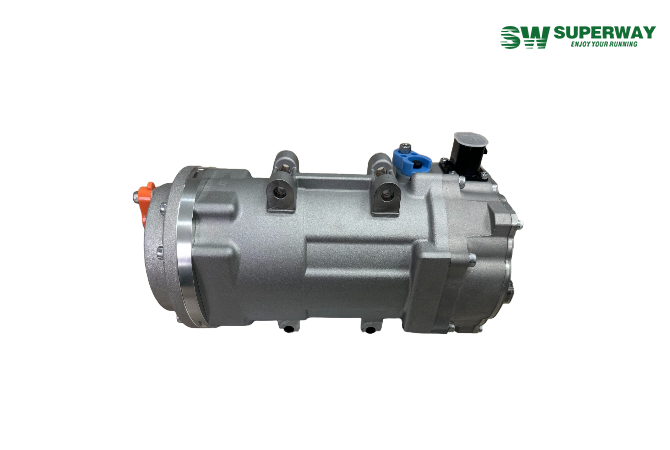

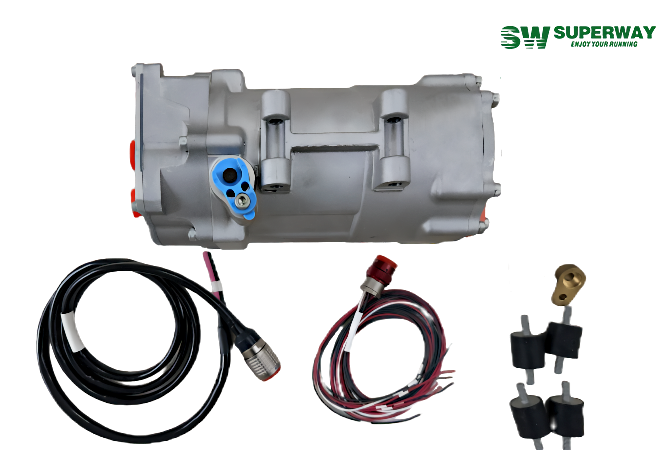

Superway High voltage Electric Compressor for Commercial Vehicle

In the new energy era, excellent compressor technology is the core of efficient refrigeration. Our newly launched high-pressure electric compressor, with large displacement and lightweight design, can meet various refrigerant requirements and is widely used in various application scenarios such as passenger cars, buses, refrigeration and battery cooling.

Electric Compressor Features

✅ High-voltage drive, strong power - Provides stable and efficient compression capacity to ensure long-term operation of the system

✅ Large displacement, rapid cooling - Improves cooling efficiency and meets the needs of rapid cooling in high-temperature environments

✅ Lightweight design, energy-saving and high efficiency - Reduces the burden on the vehicle and improves energy utilization

✅ Multi-refrigerant compatibility, wide adaptability - Adapts to a variety of refrigerants such as R134a, R1234yf, R410a, and flexibly responds to different application requirements

✅ Applicable to all scenarios, excellent performance - Perfect match for both new energy vehicle air conditioning and cold chain transportation refrigeration system

Technical Specification

Model	SWEVS36	SWEVS42	SWEVS50	SWECS40	SWECS80
Displacement (cc/rev)	36	42	50	40	80
Voltage range (VDC)	200~450 400~750	200~450 400~750	200~450 400~750	400~750	400~750
Weight with oil (kg)	7.6	8.2	8.8	14.5	17.5
Length （mm）	284	304	307	350	390
Speed range（Rpm）	1500~6000	1500~6000	1500~6000	1500~6000	1500~6000
Cooling Capacity (kw)	4.1kw ~13.6kw	4.6kw ~14.8kw	6kw ~20kw	4kw ~21kw	6kw ~27kw
Communication Protocol	CAN 2.0 B	CAN 2.0 B	CAN 2.0 B	CAN 2.0 B	CAN 2.0 B
Refrigerant	R134a/R1234yf/R407C/R290			R410A	R407C/R134a
Technical Features	●The industry's first mass production of axial integrated layout EDC ● Suitable for car, bus, refrigeration and battery cooling, etc. ● High and low voltage platform:200-450/400-750VDC ● R134a/R1234yf/R407C/R404A/R452A/R290 Suitable for various refrigerants: R134a/R1234yf/R407C/R404A/R452A/R290 ●Flexible adaptation: the shell can be rotated, the connector is optional			●The industry's largest displacement aluminum scroll EDC matching 12m bus ● Excellent built-in lubricating mechanism design, comprehensivelyimprove the reliability ●The lightest weight among competing products of the same displacement,excellent NVH performance
