Superway Floor mounted BTM System BTM-08

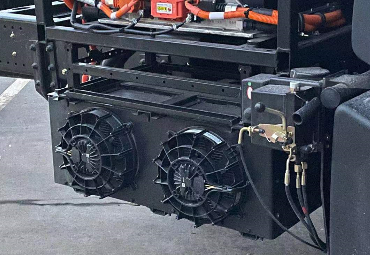

BTM series can flexibly installed on the frame or chassis, which is consistent

with the height of mainstream batteries. lt can be applied to power exchange

charging heavy-duty trucks, pure electricsanitation,construction machinery,etc.

Bus
Mining Truck
Light Truck
Heavy Truck

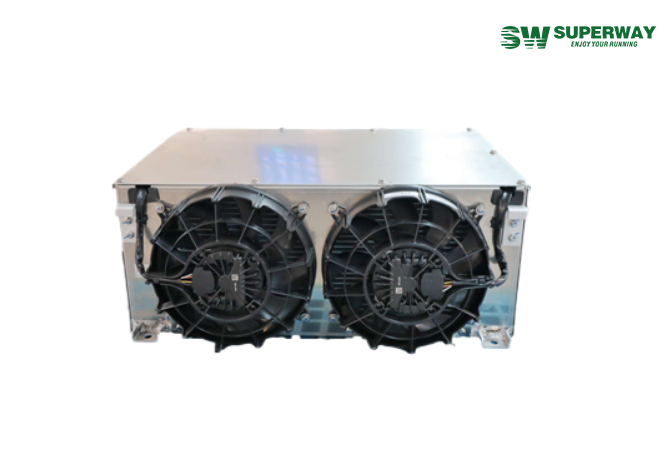

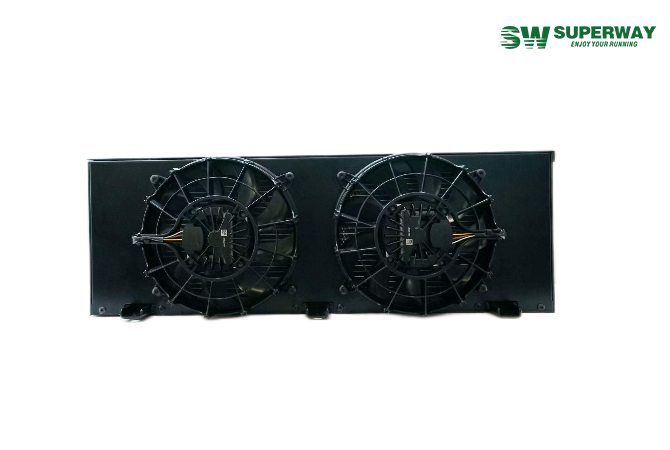

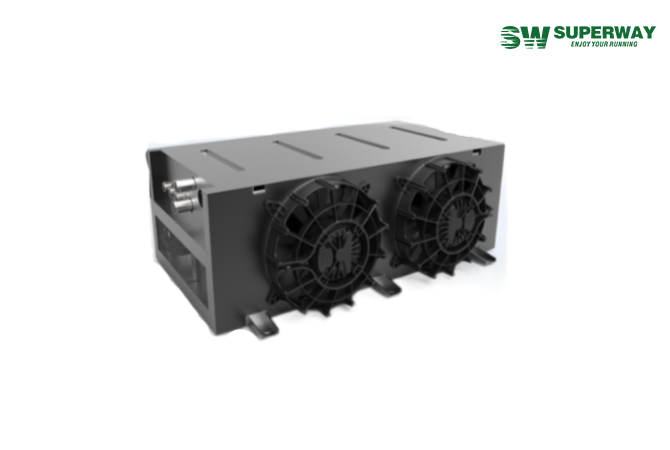

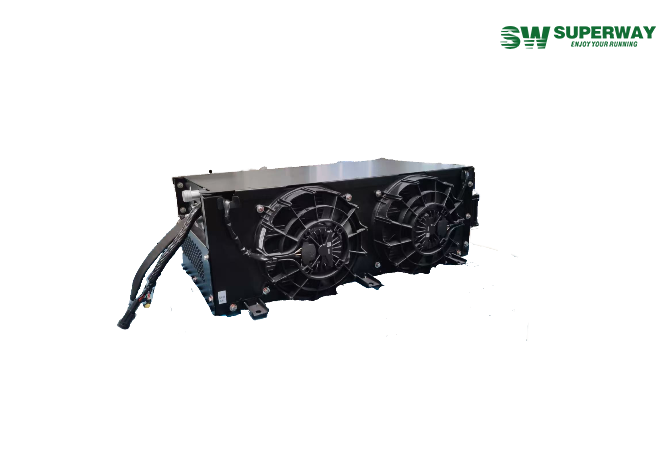

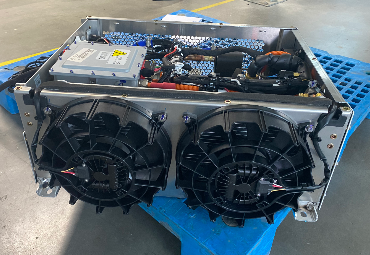

Superway Floor mounted BTM System

Superway Floor mounted BTM System has Four models , BTM-03,BTM-05,BTM-08,BTM-10,Cooling capacity from 3KW~10KW.

Superway Floor mounted BTM System Features

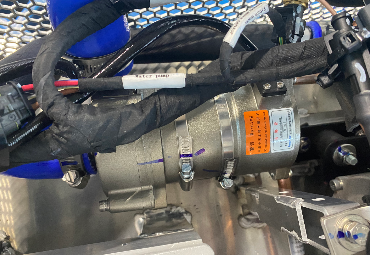

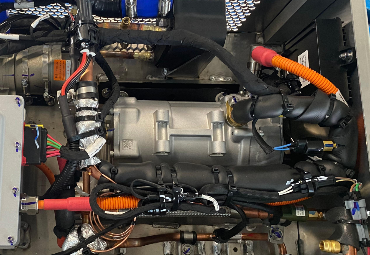

★ It adopts an integrated all-DC variable frequency compressor, which is light in weight and high in energy efficiency.

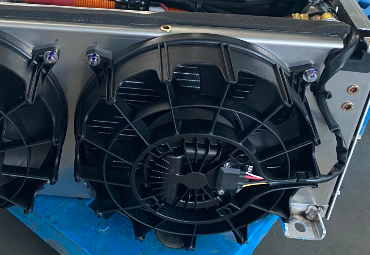

★ It adopts variable frequency control technology, and achieves higher energy efficiency through PID and fan variable frequency control.

★ The company is the first in China to adopt dual-circuit electronic expansion valves and P+T pressure sensors to accurately control the speed of the compressor and condensing fan as well as the flow distribution of the refrigerant, effectively solving the problem of uneven cooling capacity distribution on the air conditioning side and the battery side of the integrated unit.

★ It can realize the "hot and cold" needs of air conditioning heating and battery side cooling at an ambient temperature of -5℃, which is 15℃ lower than the lowest cooling operating temperature of other battery thermal management integrated products in the industry.

★ The entire series has passed the third-party EMC test certification and reached Level III.

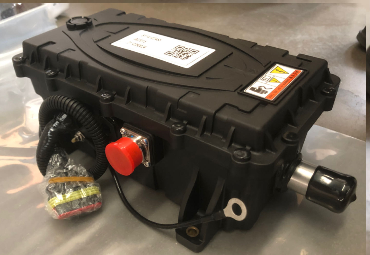

★ It has experience in vehicle water system design and matching, and can assist customers in water system solution design and complete solutions.

Technical Specification

Model	BTM-03	BTM-05	BTM-08	BTM-10
Customized cooling capacity (kw)	3KW	5KW	8KW	10KW
Unit energy efficiency	2.2
Operating temperature range	-20℃~60℃
High voltage power supply range	DC600V (DC 400~DC 750 V)
Low Voltage range	DC 24V(DC 18V~DC 32V)
Water pump (built-in)	100W	180W	240W	240W
Overall protection level	IP 67
Refrigerant	R134a /R1234yf
Refrigerating medrumtype	50%VV Ethylene glycol aqueous
Overall dimensions	L685W600H280mm	L818W600H280mm		L1005W557H280mm
Joint	Flange/pier head(Φ25)/Customizable
Connector	Aviation plug-in/AMP
Low voltage power distribution	DC-DC included in the unit/ Vehicle supply
Heating function	Reserve 5kW/10kW/12KW/14KW
