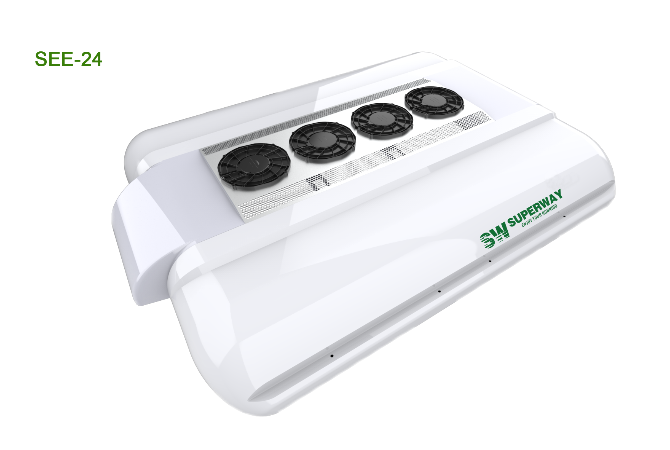

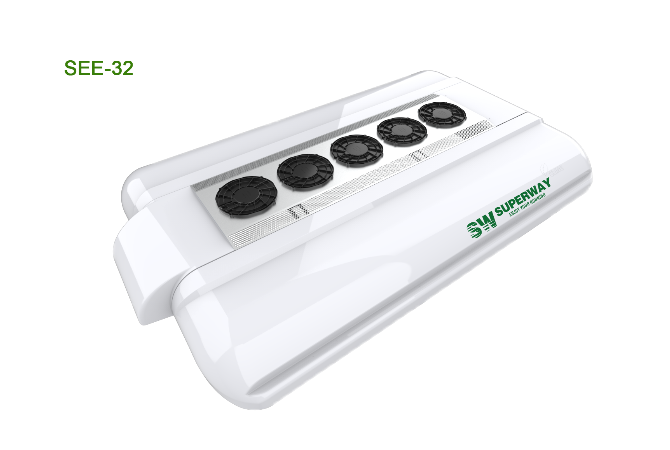

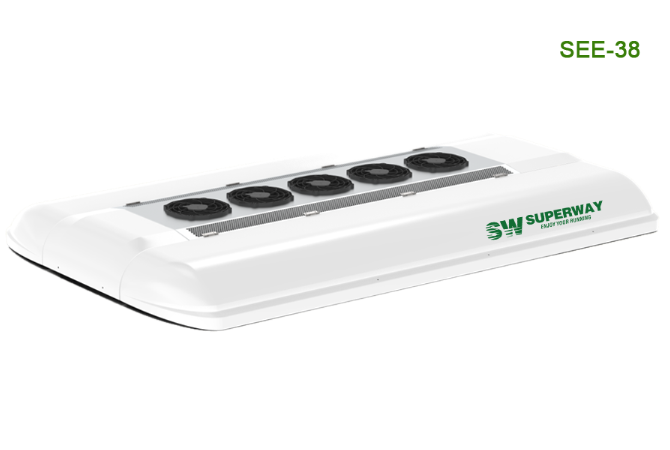

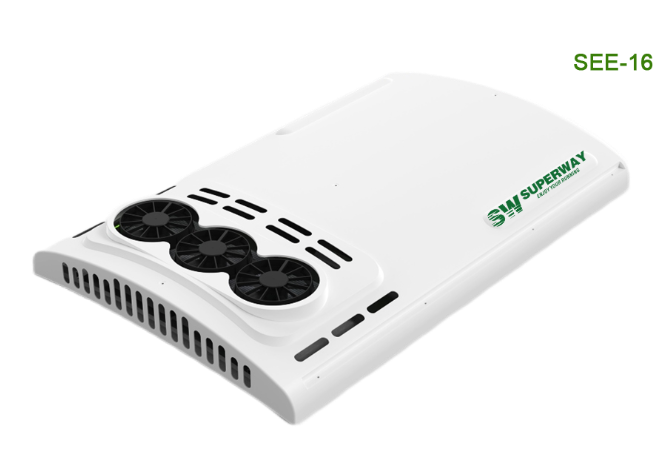

| Model | SEE-15 | SEE-24 | SEE-28 | SEE-32 | SEE-38 |
| Cooling Capacity(kcal/h) | 15000 | 24000 | 28000 | 32000 | 38000 |
| Heating Capacity(kcal/h) | 14000 | 22000 | 26000 | 30000 | 36000 |
| HV platform (V) | DC 400V~750V | DC 400V~750V | DC 400V~750V | DC 400V~750V | DC 400V~750V |
| LV platform (V) | 24 | 24 | 24 | 24 | 24 |
| Evaporator Airflow(m³/h) | 4000(4pcs) | 4000(4pcs) | 6000(6pcs) | 6000(6pcs) | 8000(8Pcs) |

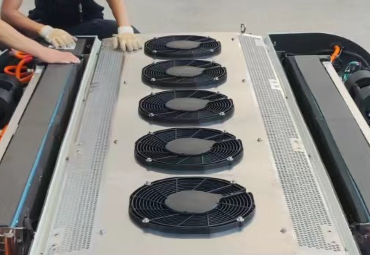

| Condenser Airflow(m³/h) | 6000(3pcs) | 8000(4pcs) | 8000(4pcs) | 10000(5pcs) | 10000(5pcs) |
| Refrigerant | R407C | R407C | R407C | R407C | R407C |
| Weight (kg) | 185 | 245 | 275 | 305 | 325 |
| Size(mm) LxWxH | 2700*1630*240 | 2750*2000*260 | 3000*2000*260 | 3250*2000*260 | 3250*2000*260 |
| Application | 6m~7m | 7.5m~9m | 9m~10m | 10m-12m | 12m-13m |
The parts have the protection grade of lP67, dust- proof, waterproof, and free of damage due to soaking in water

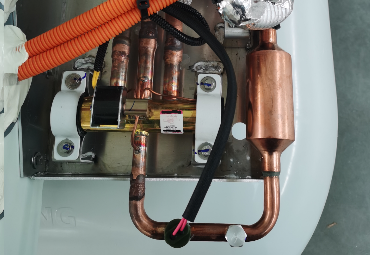

Heat pump system by 4 way valve, free conversion of cooling and heating functions , achieve to high energy efficiency

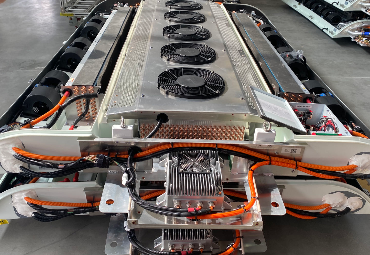

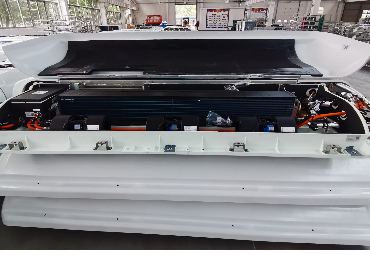

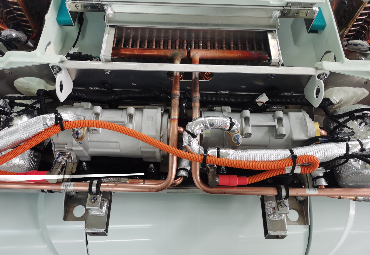

Dual return air system, Evaporator and Condenser system are overall type, compressor only 7.5kgs, Ultralight than others
PWM stepless speed regulation coupled electronic expansion valve is precisely regulated, cause natural temperature transition, energy saving and comfort
