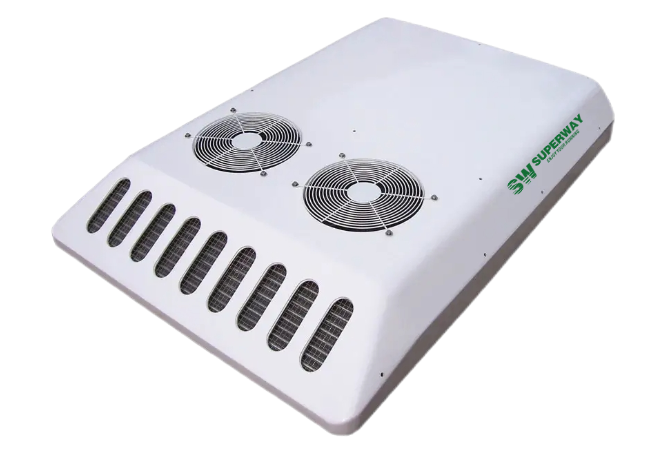

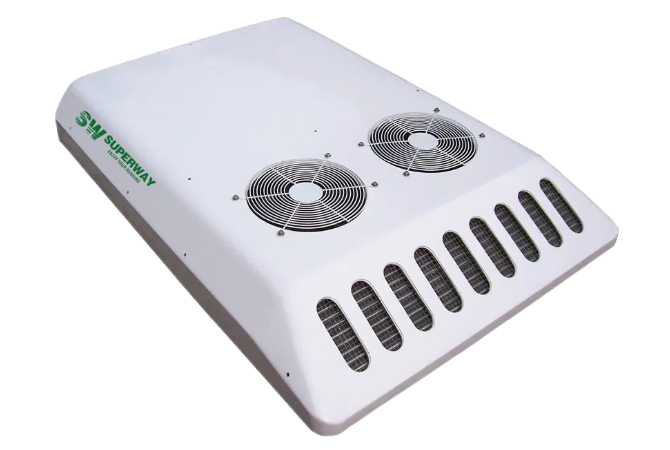

STV-11 is Roof Top Mounted Van Air Conditioner, Diesel Engine Driven
With Cooling Capacity 11KW, system easy to install and small size roof

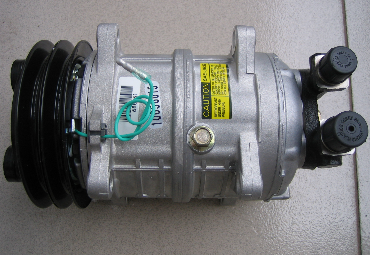

Compressor is Valeo TM-16 Model, both optional DC12V and DC24V system
STV-11 Model suitable for Minibus, MPV, VAN, Ambulance and various vehicle

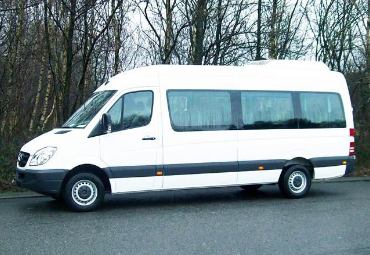

Mini Bus
MPV
Ambulance
Van
STV-11 Van Air Conditioner is designed for 9-28 seats minibus, Inner screw hread copper and and aluminum fin.

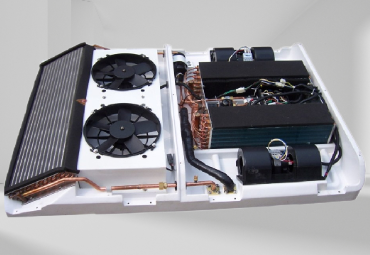

Roof top mounted and Diesel engine Driven, with 2pcs Condenser Fan and Evaporator Blower.

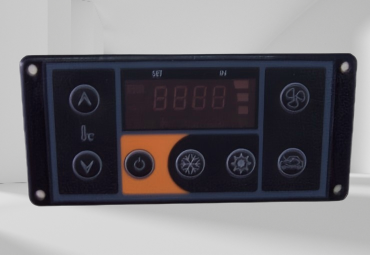

Big Airflow and low noise, smart control with Intelligent display.
ISO9001/TS16949/QS9000.
| Model | STV-08 | STV-10 | STV-11 | STV-12 |
| Cooling Capacity(Kw) | 8.0Kw | 10.0Kw | 11.0Kw | 12.0Kw |
| Voltage | 12V/24V | 12V/24V | 12V/24V | 12V/24V |
| Max Power Consumption(A) | 20A | 26A | 28A | 32A |
| Evaporator Airflow(m³/h) | 1700(2 pcs) | 1700(2 pcs) | 2000(2pcs) | 2000(2pcs) |
| Condenser Airflow(m³/h) | 3800(2 pcs) | 3800(2 pcs) | 3200(2pcs) | 3200(2pcs) |
| Compressor Displacement(CC) | 7H15/212 cc | 7H15/212 cc | TM 16/ 163 cc | TM 21 / 215cc |
| Refrigerant | R134a | R134a | R134a/2.1kg | R134a/2.1kg |
| Size(mm) LxWxH | 1020*980*174 mm | 1020*980*174 mm | 1660*1245*210 | 1660*1245*210 |
| Application | Van,ambulanc | Van,ambulance | Minibus, Van, Iveco,etc |
Minibus, Van, Iveco,etc |
