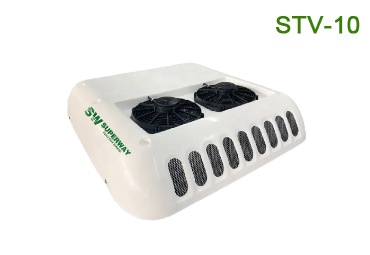

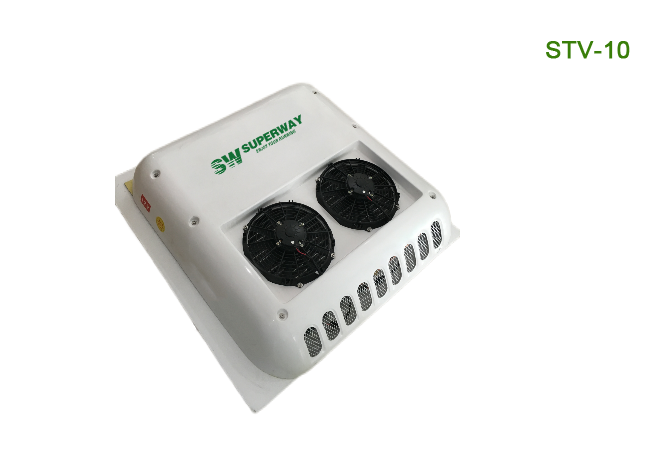

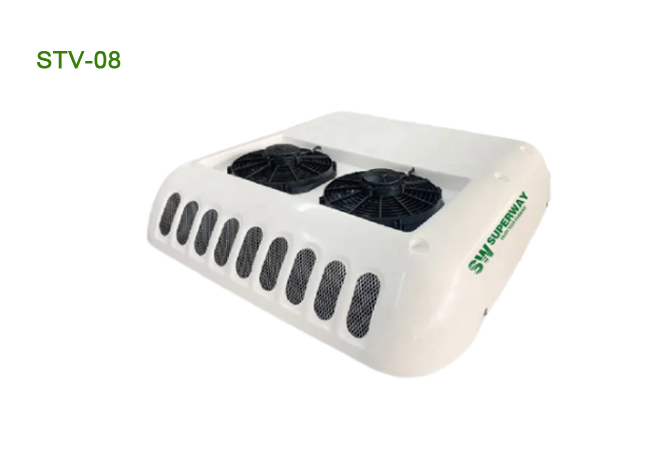

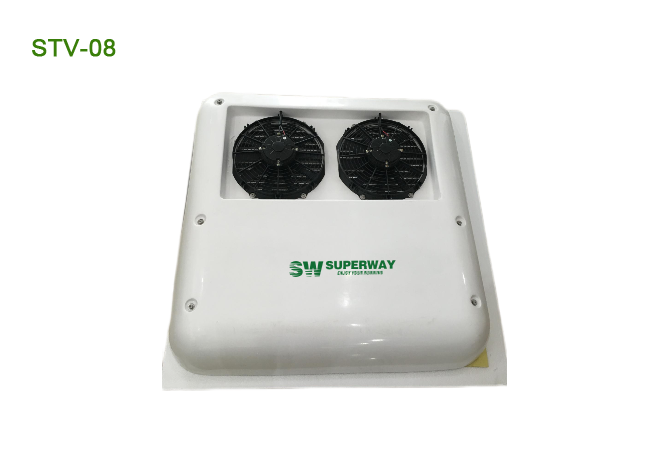

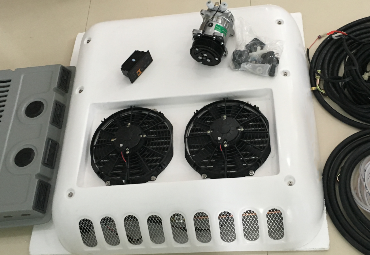

Superway Engine Drive Van Air Conditioner STV-08/10

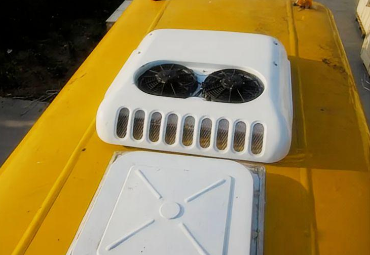

STV-08 and STV-10 is Roof Top Mounted Van Air Conditioner

With Cooling Capacity 8KW and 10KW, system easy to install

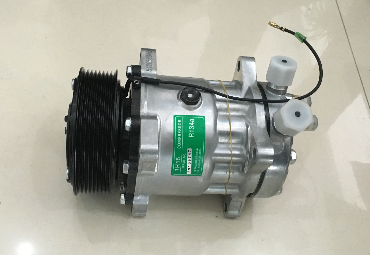

Compressor is 7H15, both optional DC12V and DC24V system

Suitable for Minibus, MPV, VAN, Ambulance and various vehicle type

Mini Bus
MPV
Ambulance
Van

Superway Engine Drive Van Air Conditioner STV-08/10 Features

Compact design: Space saving, one-body type, easy to install

Low noise: Silent air duct design, reduce the noise, driving more focused, riding more comfortable

Fast cooling: Advanced refrigeration technology can quickly reduce the temperature in a short time

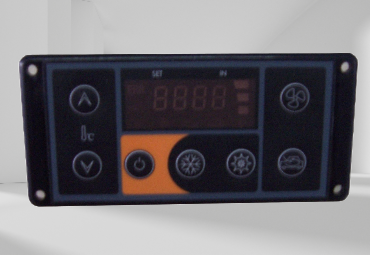

Intelligent control panel: Intuitive operation, free adjustment of wind speed and temperature, one-button to turn on the comfort mode

Strong high temperature resistance design: No fear of scorching heat, continuous and stable work, ensuring that the vehicle is still cool and comfortable in hot weather

Technical Specification

Model	STV-08	STV-10	STV-11	STV-12
Cooling Capacity(Kw)	8.0Kw	10.0Kw	11.0Kw	12.0Kw
Voltage	12V/24V	12V/24V	12V/24V	12V/24V
Max Power Consumption(A)	20A	26A	28A	32A
Evaporator Airflow(m³/h)	1700(2 pcs)	1700(2 pcs)	2000(2pcs)	2000(2pcs)
Condenser Airflow(m³/h)	3800(2 pcs)	3800(2 pcs)	3200(2pcs)	3200(2pcs)
Compressor Displacement(CC)	7H15/212 cc	7H15/212 cc	TM 16/ 163 cc	TM 21 / 215cc
Refrigerant	R134a	R134a	R134a/2.1kg	R134a/2.1kg
Size(mm) LxWxH	1020980174 mm	1020980174 mm	16601245210	16601245210
Application	Van,ambulanc	Van,ambulance	Minibus, Van, Iveco,etc	Minibus, Van, Iveco,etc
