In the new energy era, charging should not be a burden of waiting. Superway charging piles, with 3-6 minutes of ultra-fast charging, smart interlocking safety design, and self-adjusting technology, comprehensively improve charging efficiency and safety, making every charging one step faster and safer!
⚡ 3-6 minutes super fast charging, subverting the charging experience
Superway charging piles are equipped with efficient fast charging technology, which can be fully charged in 3-6 minutes, greatly shortening the charging time, allowing electric car owners to enjoy a charging experience that is truly close to the speed of refueling, and completely bid farewell to long waiting!
⚡ Interlocking safety design, smarter protection
The interlocking function design automatically locks the plug during charging to prevent accidental unplugging, effectively avoid misoperation or charging interruption, ensure safe and reliable charging process, and is suitable for high-frequency use scenarios.
⚡ Self-adjustment function, suitable for different models
Superway charging piles have intelligent self-adjustment function, which can automatically optimize the charging curve according to the vehicle battery status, ambient temperature, and power requirements to ensure more stable and efficient charging, suitable for various new energy passenger cars and commercial vehicles.
⚡ Suitable for various charging scenarios
★ Public charging stations: reduce waiting in line and improve station utilization⚡ Ultra-high power conversion rate, energy-saving and efficient
Superway charging piles use a high-efficiency power conversion system with a power conversion rate of >95%, maximizing power utilization, reducing energy consumption, and making charging stations more economical and environmentally friendly.

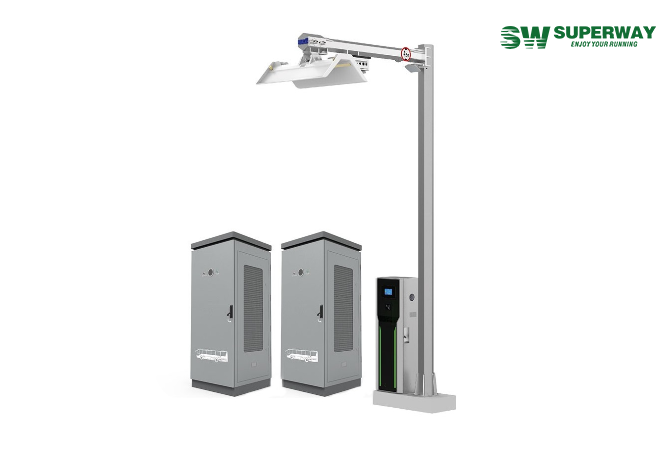

| Charging type | pantograph up | |||
| Output Power | 360kW | 480kW | 600kW | |
| Input voltage range | 400VAC±15% (50Hz-60Hz) | |||
| Connector types | 3P + N + PE | |||
| Max Input Current | < 660A | < 880A | < 1100A | |
| Efficiency(max) | >95% (peak) | |||
| Power factor (full load) | > 0.99 | |||
| THDi | < 5% | |||
| DC output voltage | 150Vdc-1000Vdc | |||
| DC plug Rated Current | 550A/1100A | |||
| Custom communication | 4G , Ethernet | |||
| Communication protocols | OCPP 1.6J(Extendable to ocpp 2.0) | |||
| RFID Reader | ISO 14443 | |||
| Software update | Remote upgrade | |||
| Energy metering | MID | |||
| Protection | Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection | |||
| Operational altitude | Up to 2500 m | |||
| Operating temperature range | -30°C to + 55°C (power de - rating applies) | |||
| Humidity | 5 -95% Rh non- condensing | |||
| IP and IK rating | IP-55 and IK-10 | |||
| Dimensions (W x D x H) | 2660mm*1300mm*5160mm | |||
| Product standard | IEC 61851-1/23/24,IEC 62196-1/3,ISO 15118, oppcharge | |||
| Certification | TUV CE | |||
