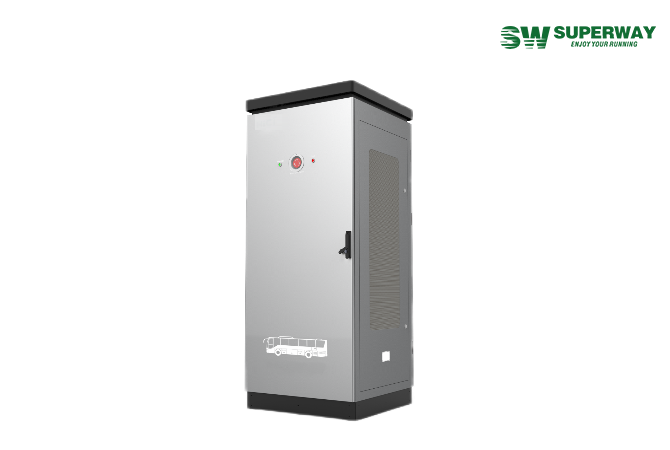

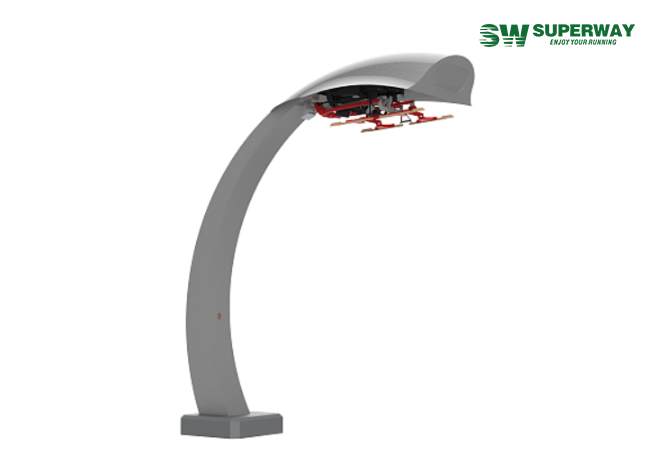

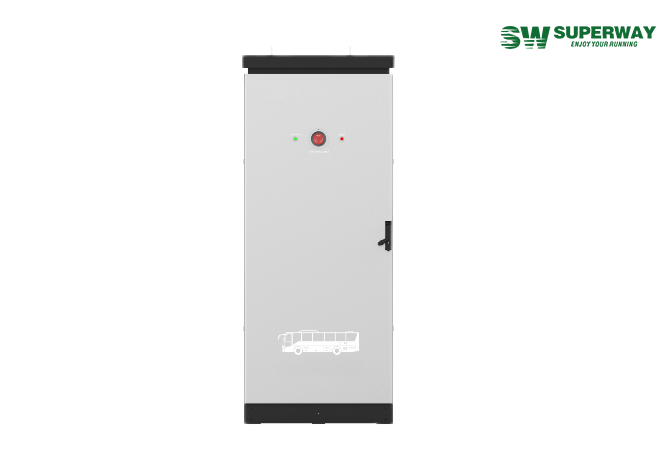

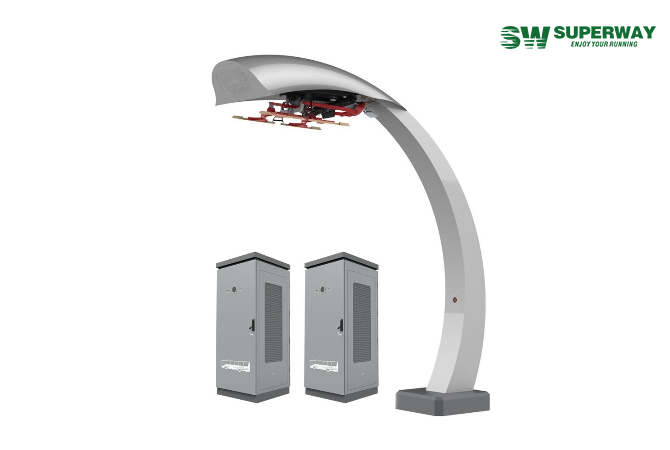

Superway Pantograph System 150kKW~600KW

Superway Pantograph System 150kKW~600KW

Charge in 3 to 6 minutes,instantaneous charging in the day.
WIFI communication mode adopted to achieve data exchange.
Inter-lock function design.
Self-adjustment function.
Output Voltage Range: 150-1000V.
Power Conversion Efficiency: >95%.



  • Bus Station

  • Railway station

  • Public Parking

  • Shopping mall

Superway Pantograph system: Fully charged in 3-6 minutes, smart interlocking is safer!

In the new energy era, charging should not be a burden of waiting. Superway charging piles, with 3-6 minutes of ultra-fast charging, smart interlocking safety design, and self-adjusting technology, comprehensively improve charging efficiency and safety, making every charging one step faster and safer!



Superway Pantograph system Features

⚡ 3-6 minutes super fast charging, subverting the charging experience

Superway charging piles are equipped with efficient fast charging technology, which can be fully charged in 3-6 minutes, greatly shortening the charging time, allowing electric car owners to enjoy a charging experience that is truly close to the speed of refueling, and completely bid farewell to long waiting!


⚡ Interlocking safety design, smarter protection

The interlocking function design automatically locks the plug during charging to prevent accidental unplugging, effectively avoid misoperation or charging interruption, ensure safe and reliable charging process, and is suitable for high-frequency use scenarios.


⚡ Self-adjustment function, suitable for different models

Superway charging piles have intelligent self-adjustment function, which can automatically optimize the charging curve according to the vehicle battery status, ambient temperature, and power requirements to ensure more stable and efficient charging, suitable for various new energy passenger cars and commercial vehicles.


⚡ Suitable for various charging scenarios

★ Public charging stations: reduce waiting in line and improve station utilization
★ Shopping malls/office buildings: meet high-frequency short-time fast charging needs and improve user experience
★ Highway service areas: ultra-fast charging, more convenient long-distance travel
★ Logistics/commercial fleets: reduce charging time and improve operational efficiency

⚡ Ultra-high power conversion rate, energy-saving and efficient

Superway charging piles use a high-efficiency power conversion system with a power conversion rate of >95%, maximizing power utilization, reducing energy consumption, and making charging stations more economical and environmentally friendly.


Technical Specification


Charging type pantograph down
Output Power 360kW 480kW 600kW
Input voltage range 400VAC±15% (50Hz-60Hz)
Connector types 3P + N + PE
Max Input Current < 660A < 880A < 1100A
Efficiency(max) >95% (peak)
Power factor (full load) > 0.99
THDi < 5%
DC output voltage 150Vdc-1000Vdc
DC plug Rated Current 500A/850A
Custom communication 4G , Ethernet
Communication protocols OCPP 1.6J(Extendable to ocpp 2.0)
RFID Reader ISO 14443
Software update Remote upgrade
Energy metering MID
Protection Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection
Operational altitude Up to 2500 m
Operating temperature range -30°C to + 55°C (power de - rating applies)
Humidity 5 -95% Rh non- condensing
IP and IK rating IP-55 and IK-10
Dimensions (W x D x H) 3174mm*1681mm*4866mm
Product standard IEC 61851-1/23/24,IEC 62196-1/3,ISO 15118, oppcharge
Certification TUV CE
