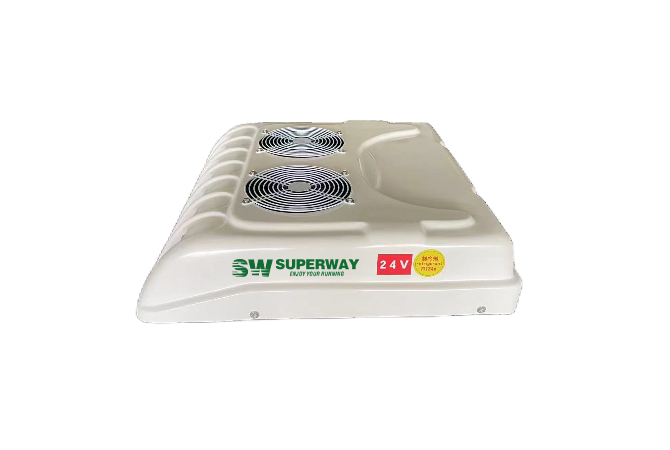

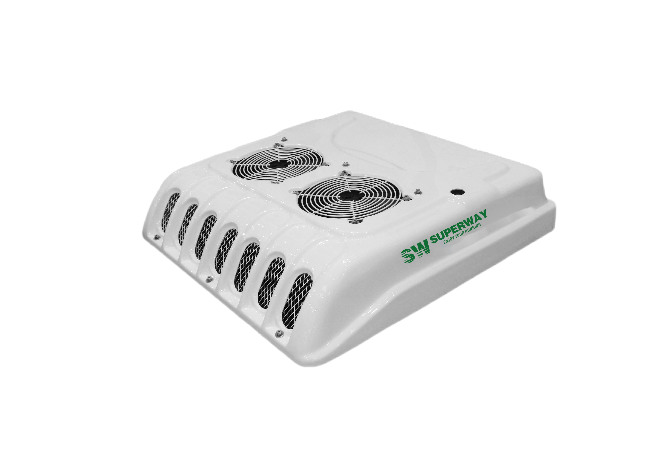

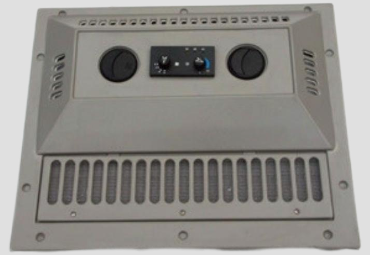

WD-05 Truck/Tractor Air Conditioner

Diesel engine driven; rooftop mounted air conditioner.

Compact design, space saving, one-body type, easy to install.

Digital temperature control system, world first-class brand key parts

Low power consumption,Lightweight, economically efficient

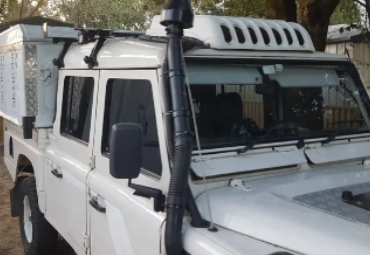

Developed special for tractor, tractor cab, truck cabin, trailer cab and other special vehicles.

Forklift
Harvester
tractor
Truck

WD-05 Truck/Tractor Air Conditioner Feature

1. Improve driving comfort

In hot summer or cold winter, air conditioning can provide suitable temperature, reduce the discomfort caused by extreme weather to the driver, and improve work efficiency. Air conditioning can also reduce humidity in the car, avoid glass fogging, and improve driving safety.

2. Improve work efficiency

During long-term driving, a good air conditioning system can reduce driving fatigue, keep the driver awake, and improve operating accuracy and reaction speed.

For the agricultural or logistics and transportation industries, air conditioning allows drivers to maintain longer working time in hot or cold environments and improve production efficiency.

3. Improve air quality

Modern air conditioning systems are equipped with air filtration functions, which can reduce dust, pollen, etc. from entering the cab, especially suitable for dusty working environments such as farmland and construction sites.

For long-distance truck drivers, a closed air-conditioned environment can reduce the impact of polluted air from the outside on their health.

4. Reduce health risks for drivers

Long-term exposure to high temperatures may lead to heat stroke, dehydration and other problems. Air conditioning can effectively reduce these health risks.

In cold weather, the heating function can prevent the driver's hands and feet from becoming stiff due to low temperatures, which affects driving operations.

On the whole, traditional trucks and tractors are equipped with air conditioning not only for comfort, but also to improve the safety and work efficiency of the driver, and also have a certain protective effect on the vehicle itself.

Technical specification

Model	WD-03	WD-05
Cooling Capacity(kcal/h)	3.5KW / 3,000 Kcal/h / 12,000 BTU	5KW / 4,300 Kcal/h / 18,000 BTU
Compressor	5H14	5H14
Compressor Displacement(CC)	138cc	138cc
Evaporator Airflow(m³/h)	600m3/h	850m3/h
Condenser Airflow(m³/h)	750m3/h	1700m3/h
Compressor Displacement(CC)	558	558
Refrigerant	R134a	R134a
Weight (kg)	32kgs	40kgs
Size(mm) LxWxH	750mm×680mm×196mm	755mm×745mm×175mm
