Product quality stable
STB series Bus Air Conditioner is split type unit

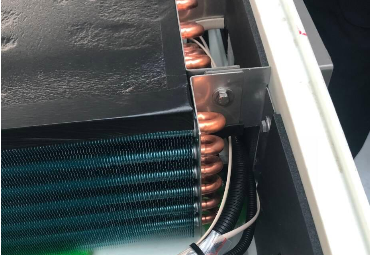

Condenser and Evaporator both cooper tube and aluminum fin
STB series specialized for the high temperature and coastal area.
City Bus
Inter City Bus
Coach

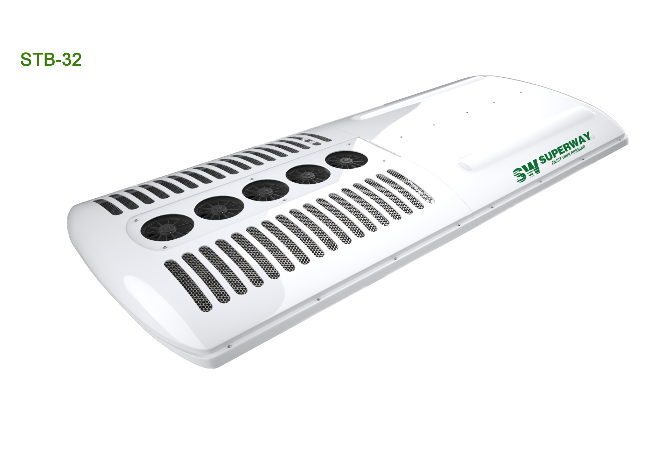

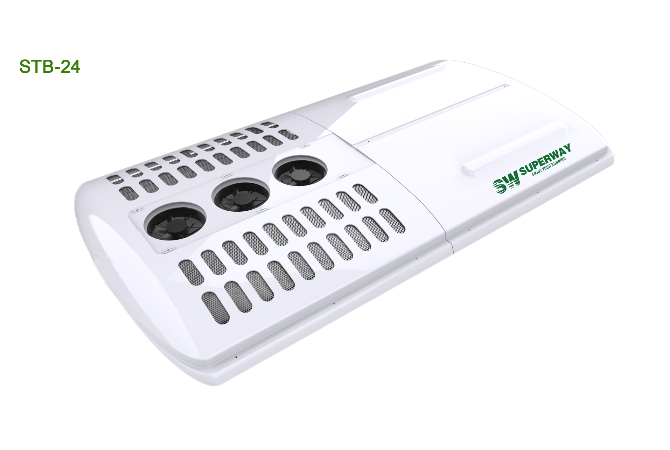

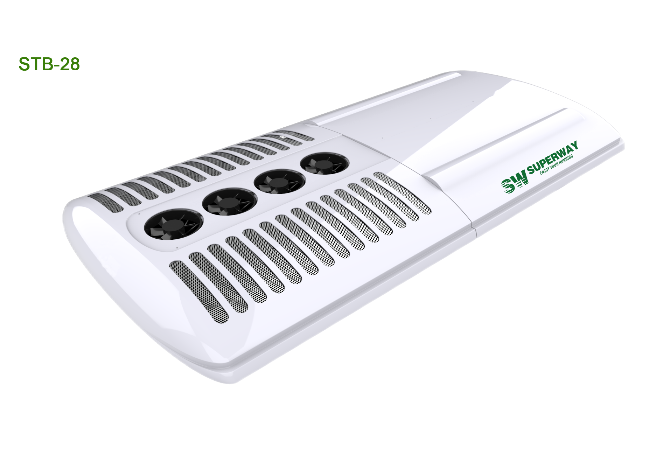

| Model | STB-24 | STB-28 | STB-32 |
| Cooling Capacity(kcal/h) | 24,000 | 28,000 | 32,000 |
| Max Power Consumption(A) | 75 | 85 | 95 |
| Evaporator Airflow(m³/h) | 4000(4pcs) | 6000(6pcs) | 8000(8pcs) |
| Condenser Airflow(m³/h) | 6000(3pcs) | 8000(4pcs) | 10000(5pcs) |
| Compressor Displacement(CC) | 470 | 550~560 | 647 |
| Refrigerant | R134a | R134a | R134a |
| Weight (kg) | 170 | 215 | 255 |
| Size(mm) LxWxH | 3335*1820*195 | 3804*1902*195 | 4435*1902*195 |
| Application | 8m-9m | 10m-11m | 12m-13m |

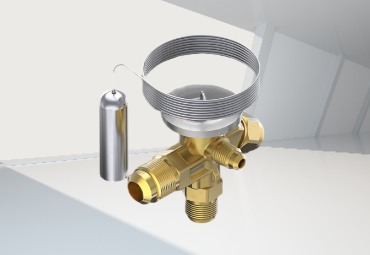

STB series Bus Air Conditioner use the Top Brand Danfoss expansion valve to ensure provide the stable cooling capacity of system.
