School Bus
City Bus
Coach
High Decker Bus

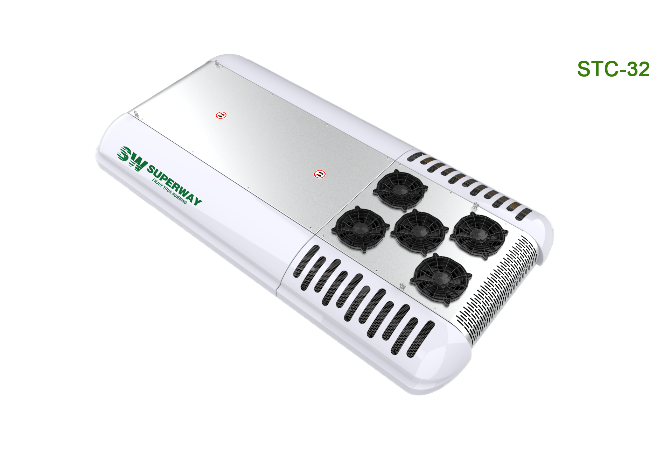

| Model | STC-32 | STC-14 |
| Cooling Capacity(kcal/h) | 32,000 | 12,000 |
| Max Power Consumption(A) | 95 | 50 |
| Evaporator Airflow(m³/h) | 6000(6pcs) | 3200(4pcs) |
| Condenser Airflow(m³/h) | 10000(5pcs) | 4000(2pcs) |
| Compressor Displacement(CC) | 647 | 313 |
| Refrigerant | R134a | R134a |
| Weight (kg) | 170 | 90 |
| Size(mm) LxWxH | 3350*1720*250 | 2200*1360*215 |
| Application | 11m-13m | Jeepny |

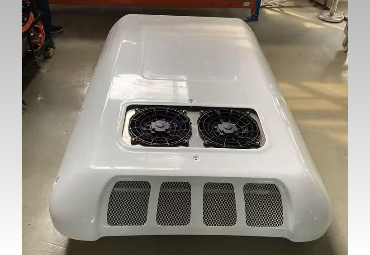

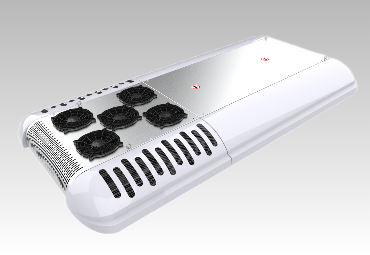

1360:2200 width-to-length ratio, 0.618 golden section ratio, and ultra-streamlined body
it paves the way for subsequent versatility, greatly reduce the weight of the air conditioner to 90 kg, and reduce the package size by 30% compared with the previous generation products.
The cooling capacity and strength of the air conditioner are kept at high level. optimize the windfield and the flow field of the air conditioner and reduce the heat loss in the process.

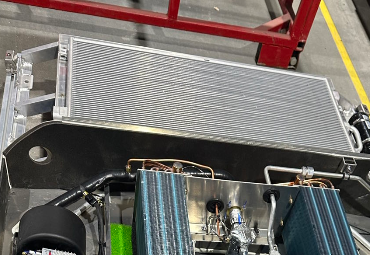

Parallel flow condensation core, durable and corrosion-resistant, suitable for coastal areas

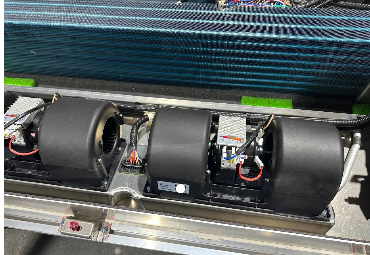

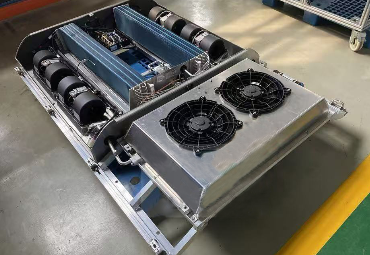

Double-sided opening lid, Evaporator blower,condenser fan, dryer tank and other components can easy replacement
Effectively improves the fan efficiency and reduces the airflow interference between fans.
