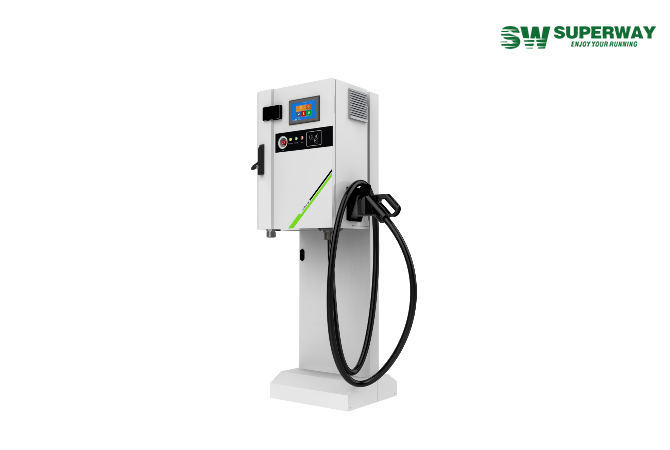

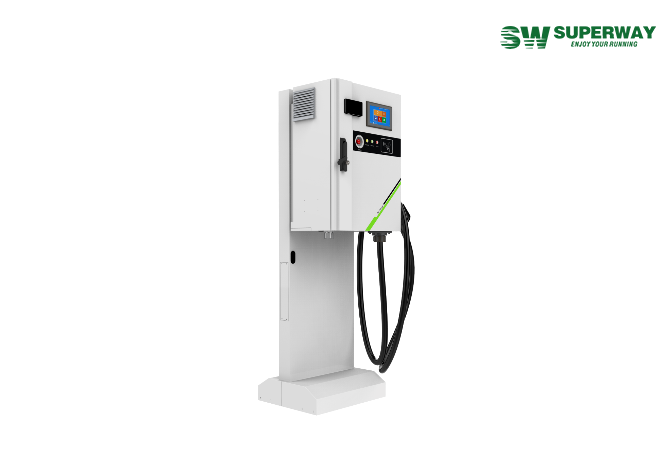

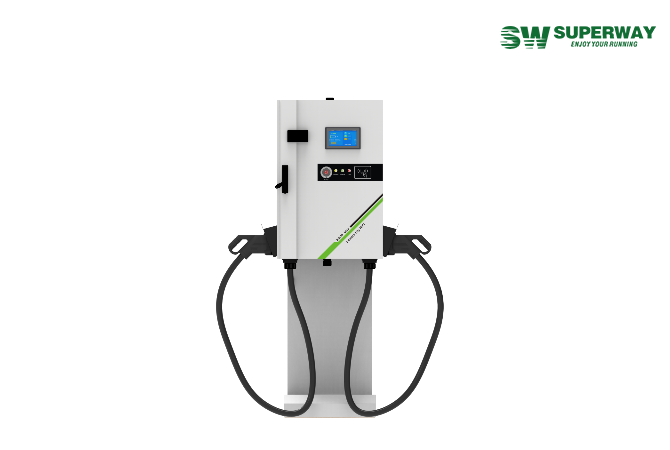

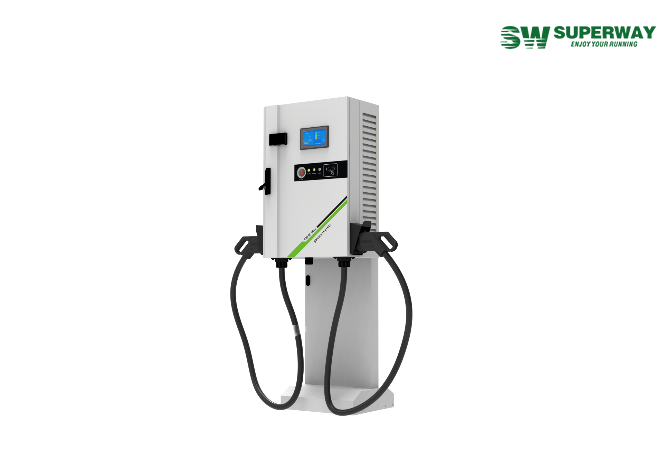

Superway DC Charger WALL BOX Fast Charger 30KW/60KW

The development of new energy electric vehicles is changing with each passing day, and charging technology also needs to keep pace with the times. Superway charging piles are designed for current and future high-voltage electric vehicles. With 200A high-current fast charging, compact body, high durability, and over 10 years of service life, they help new energy vehicles enter the real fast charging era!

Superway DC Charger WALL BOX Features

⚡ Support high-voltage fast charging to meet future needs

Superway charging piles are compatible with existing and future high-voltage electric vehicles, support high-current charging up to 200A, greatly shorten the charging time, and allow new energy vehicle owners to enjoy a more efficient and convenient energy replenishment experience.

⚡ Compact size and easy installation

Adopting innovative structural design, Superway charging piles have a smaller size and less space, suitable for public charging stations, shopping malls, parking lots, office buildings and other places. Whether it is ground-mounted or wall-mounted, it can flexibly adapt to various environmental needs.

⚡ High durability, service life of more than 10 years

The charging pile has undergone rigorous durability testing, with a high-strength shell, moisture-proof, mildew-proof, and salt spray-proof coating. It can still operate stably even in harsh environments, with a service life of more than 10 years, bringing long-term benefits to investors and operators.

⚡ Ultra-high power conversion rate, energy-saving and efficient

Superway charging piles adopt an intelligent power management system with a power conversion efficiency of more than 95%, which reduces energy loss, optimizes operating costs, and makes new energy charging stations more energy-saving and environmentally friendly.

⚡ Intelligent compatibility, helping green travel

Facing the rapid popularization of high-voltage electric vehicles in the future, Superway charging piles provide more reliable charging solutions for charging station operators and new energy vehicle users with core advantages such as high efficiency, intelligence, and durability, and jointly promote the arrival of the green travel era!

Technical Specification

Charging type	DC Charger
Output Power	30kW	60kW
Input voltage range	400VAC±15% (50Hz-60Hz)
Connector types	3P + N + PE
Max Input Current	< 55A	< 110A
Efficiency(max)	>95% (peak)
Standby Power Consumption	＜50W*N (Plug)
Power factor (full load)	> 0.99
THDi	< 5%
DC output voltage	150Vdc-1000Vdc
DC plug Rated Current	0-100A	0-200A
Custom communication	4G , Ethernet
User authentication	App, RFID, MAC, Screen button
User interface	7" LCD touchscreen
Communication protocols	OCPP 1.6J(Extendable to ocpp 2.0)
RFID Reader	ISO 14443
Multilanguage system	English, French, Spanish, Russian and Chinese
Software update	Remote upgrade
Charging connector	1	1or2
Energy metering	MID
Protection	Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection
Operational altitude	Up to 2500 m
Operating temperature range	-30°C to + 55°C (power de - rating applies)
Humidity	5 -95% Rh non- condensing
IP and IK rating	IP-54 and IK-10(cabinet)/IK-8(touchscreen)
Dimensions (W x D x H)	500mm339mm720mm	650mm380mm950mm
Weight	≤ 80kg	≤ 120kg
Cable length	5 meters(8m/10m optional)
Product standard	IEC 61851-1/23/24,IEC 62196-1/3,DIN 70121,ISO 15118
Certification	TUV CE、TR25
Pole-Mounted supporter	H-1620mm
