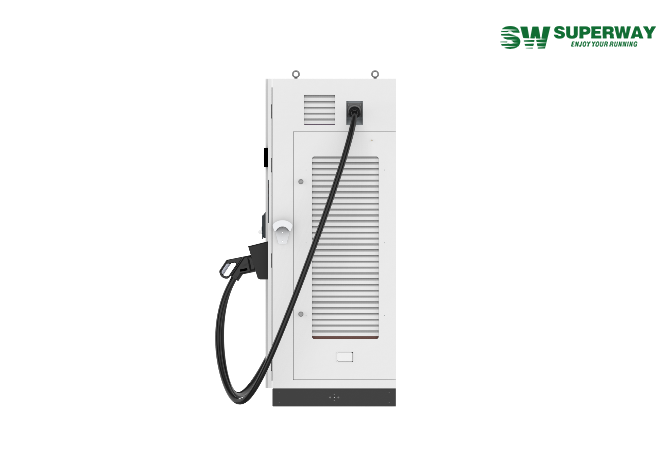

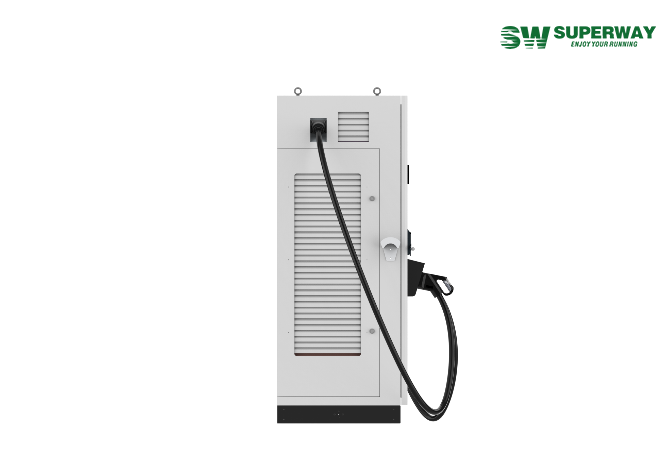

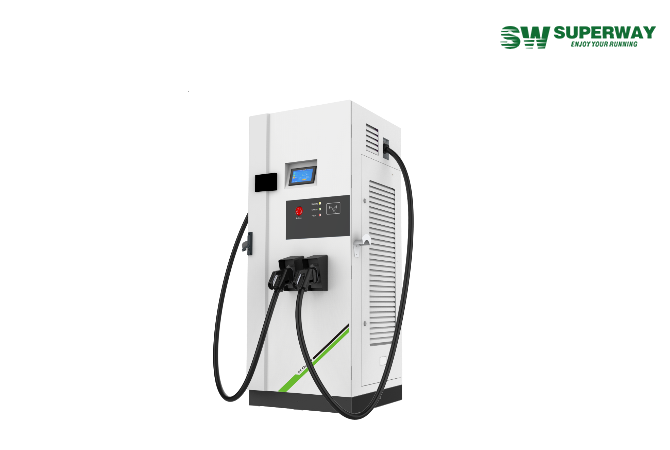

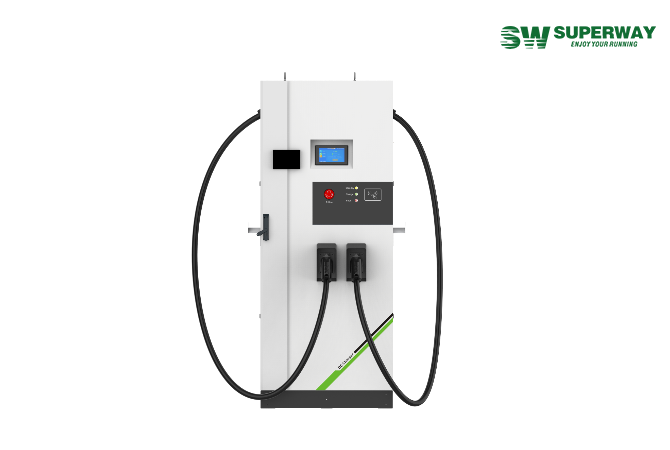

Superway DC Charger 240KW/320KW/360KW
With the popularity of new energy electric vehicles, charging speed has become a core issue of concern to users. Superway charging pile, with 360KW ultra-high power, intelligent dynamic power distribution, efficient and stable power conversion, brings a new charging experience to new energy vehicle owners and commercial fleets.
Superway DC charger Features
⚡ Ultra-fast charging, shorten waiting time
Superway charging piles support up to 360KW high-power fast charging, which can reach a super charging capacity of 1000V/400A, greatly reducing charging time, and are suitable for all kinds of mid-to-high-end new energy vehicles and commercial electric vehicles, making energy replenishment as fast and efficient as refueling!
⚡ Dynamic power allocation, dual-car shared fast charging
Using advanced dynamic power allocation technology, Superway charging piles can intelligently allocate power and charge two cars at the same time on one charging pile, greatly improving the efficiency of charging stations, reducing queues, and making energy use smarter and more economical!
⚡ Power conversion efficiency >95%, energy-saving and efficient
Superway charging piles use an efficient power management system with a conversion efficiency of more than 95%, reducing power loss and operating costs, so that every kilowatt-hour of electricity can be used to its maximum value and help green travel.
⚡ Triple-proof coating, adaptable to extreme environments
To ensure long-term stable operation, Superway charging piles adopt a three-proof paint coating design that is moisture-proof, mildew-proof, and salt spray-proof. Even in harsh environments such as humidity, seaside, and extreme cold, they can maintain efficient and stable working conditions, providing users with a durable charging solution.
⚡ Green travel, starting with charging!
Superway charging piles not only improve charging efficiency, but also promote the development of new energy infrastructure, providing new energy vehicle owners with a more convenient and efficient charging experience. Whether it is a city fast charging station, a commercial fleet refueling station, a logistics park, or a highway service area or a parking lot charging station, Superway charging piles are your best choice!
Technical Specification
|
Charging type |
DC Charger |
|
Output Power |
240kW |
320kW |
360kW |
|
Input voltage range |
400VAC±15% (50Hz-60Hz) |
|
Connector types |
3P + N + PE |
|
Max Input Current |
< 440A |
< 587A |
< 660A |
|
Efficiency(max) |
>95% (peak) |
|
Standby Power Consumption |
＜50W*N (Plug) |
|
Power factor (full load) |
> 0.99 |
|
THDi |
< 5% |
|
DC output voltage |
150Vdc-1000Vdc |
|
DC plug Rated Current |
CCS1：0-300A (support dual-plug) |
|
CCS2：0-300A (support dual-plug) |
|
GB/T：0-250A (support dual-plug) |
|
custom communication |
4G , Ethernet |
|
User authentication |
App, RFID, MAC, Screen button |
|
User interface |
7" LCD touchscreen |
|
Communication protocols |
OCPP 1.6J(Extendable to ocpp 2.0) |
|
RFID Reader |
ISO 14443 |
|
Multilanguage system |
English, French, Spanish, Russian and Chinese |
|
Software update |
Remote upgrade |
|
Charging connector |
1or2 |
|
Protection |
Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection |
|
Operational altitude |
Up to 2500 m |
|
Operating temperature range |
-30°C to + 55°C (power de - rating applies) |
|
Humidity |
5 -95% Rh non- condensing |
|
IP and IK rating |
IP-55 and IK-10(cabinet)/IK-8(touchscreen) |
|
Dimensions (W x D x H) |
750mm*700mm*1860mm |
|
Weight |
≤480kg |
|
Cable length |
5 meters(8m/10m optional) |
|
Product standard |
IEC 61851-1/23/24,IEC 62196-1/3,DIN 70121,ISO 15118 |
|
Certification |
CE |
