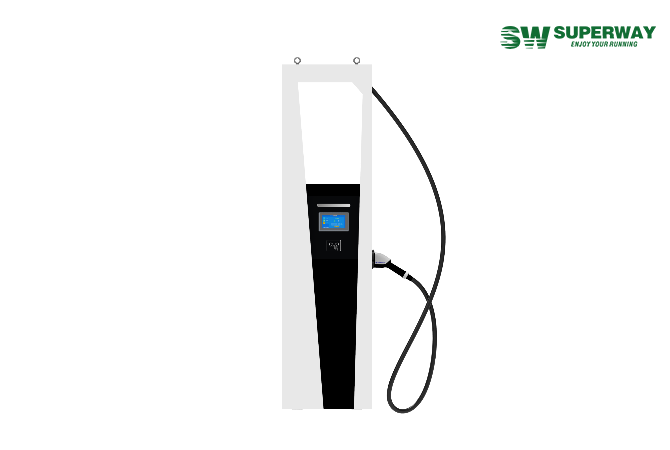

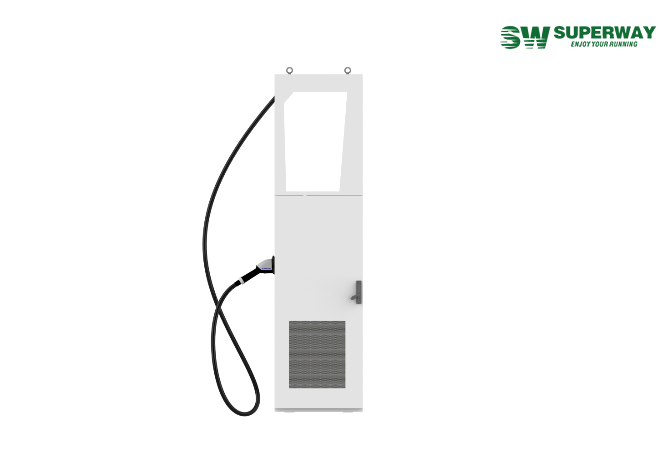

In the new energy era, charging speed determines travel efficiency. Superway charging piles use ECCS super fast charging technology, with a charging current of up to 500A, which can recharge a passenger car for 100 kilometers in less than 3 minutes, completely subverting the traditional charging experience and allowing electric vehicles to truly enter the "second charging" era!
⚡ 500A ultra-large current, beyond the limit of fast charging
Superway charging piles are equipped with advanced ECCS charging technology, supporting up to 500A high current output, far exceeding the industry average, allowing new energy vehicle owners to say goodbye to long waits, achieve faster charging, and get on the road faster!
⚡ 3 minutes of ultra-fast energy replenishment, 100 kilometers of endurance
Traditional fast charging still takes 15-30 minutes to meet the endurance requirements, while Superway ECCS charging piles only take less than 3 minutes to allow electric vehicles to have a range of 100 kilometers, greatly reducing the charging time, truly achieving "charging like refueling"!
⚡ Compatible with current and next-generation electric vehicles
Superway charging piles are not only suitable for existing high-voltage electric vehicles, but also prepare for the charging needs of the next generation of electric vehicles in the future, ensuring that new energy vehicle owners always enjoy the latest charging technology.
| Charging type | DC Charger | ||
| Output Power | 240kW | 300kW | 360kW |
| Input voltage range | 400VAC±15% (50Hz-60Hz) | ||
| Connector types | 3P + N + PE | ||
| Max Input Current | < 440A | < 550A | < 660A |
| Efficiency(max) | >95% (peak) | ||
| Standby Power Consumption | ＜50W*N (Plug) | ||
| Power factor (full load) | > 0.99 | ||
| THDi | < 5% | ||
| DC output voltage | 150Vdc-1000Vdc | ||
| DC plug Rated Current | CCS1：0-500A | ||
| CCS2：0-500A | |||
| GB/T：0-600A | |||
| custom communication | 4G , Ethernet | ||
| User authentication | App, RFID, MAC, Screen button | ||
| User interface | 7" LCD touchscreen | ||
| Communication protocols | OCPP 1.6J(Extendable to ocpp 2.0) | ||
| RFID Reader | ISO 14443 | ||
| Multilanguage system | English, French, Spanish, Russian and Chinese | ||
| Software update | Remote upgrade | ||
| Charging connector | 1 | ||
| Energy metering | MID | ||
| Protection | Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection | ||
| Operational altitude | Up to 2500 m | ||
| Operating temperature range | -30°C to + 55°C (power de - rating applies) | ||
| Humidity | 5 -95% Rh non- condensing | ||
| IP and IK rating | IP-55 and IK-10(cabinet)/IK-8(touchscreen) | ||

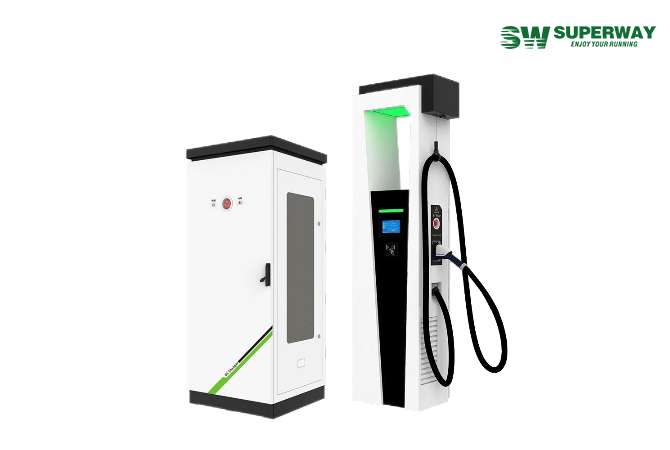

| Dimensions (W x D x H) |
820mm*820mm*1980mm(Power Cabinet) 600mm*380mm*2200mm(Dispenser) |
||
| Weight |
≤ 600kg(Power Cabinet); ≤ 180kg(Dispenser) |
||
| Cable length | 5 meters | ||
| Product standard | IEC 61851-1/23/24, IEC 62196-1/3,ISO 15118 | ||
| Certification | TUV CE、 TR25 | ||
