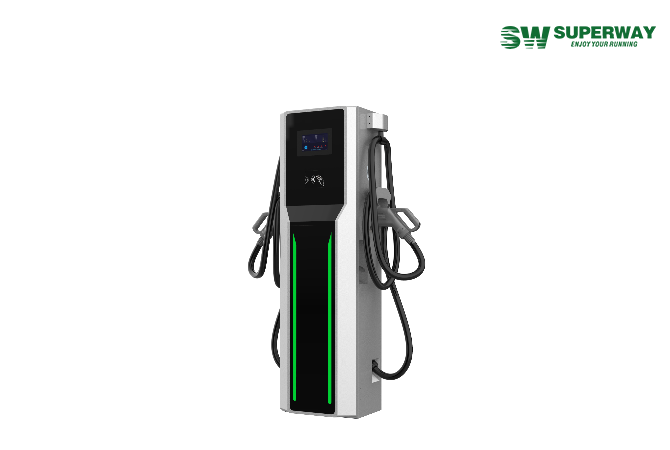

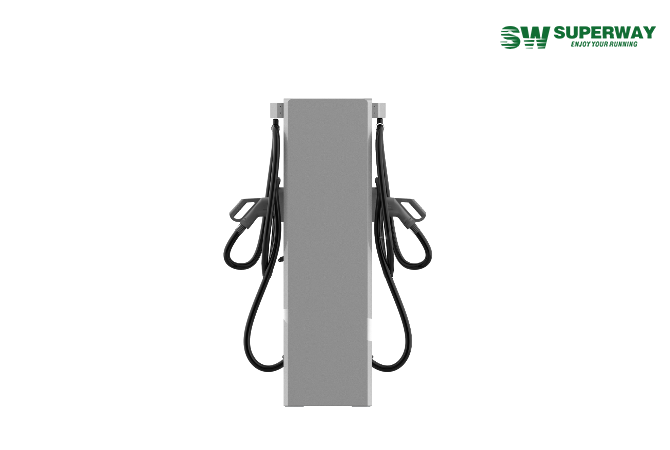

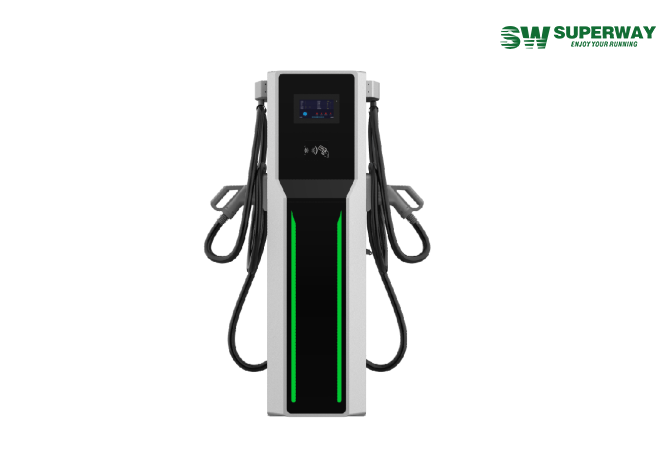

Superway Fan Cooling System 240KW/300KW/360KW

Superway Fan Cooling System 240KW/300KW/360KW

240kW/300 kW/360kW Fan Cooling Charging System
Scalable power and extendable DC outlets.
Supporting all charging standards.
Cost-efficient and space-saving.
Power Conversion Efficiency: >95%.
Output Voltage Range: 150-1000V.



  • Bus Station

  • Railway station

  • Public Parking

  • Shopping mall

Superway smart charging pile: flexible expansion, and space-saving!


In an era of continuous upgrading of charging infrastructure, Superway has launched a new generation of smart charging piles with expandable power supply and extendable DC sockets, fully supporting all charging standards, while also having the advantages of being economical, efficient, and space-saving, providing more flexible and smarter solutions for various charging scenarios!


Fan Cooling System Features


⚡ Expandable power supply to meet different charging needs

Superway charging piles adopt modular power supply design, which can flexibly expand power according to charging needs. It is suitable for different scenarios such as private charging stations, commercial charging stations, public parking lots, etc., whether it is a small parking space or a large-scale charging network, it can easily cope with it.


⚡ Extendable DC socket, more convenient charging

The unique extendable DC socket design allows the charging pile to have a larger coverage, reduce the restrictions on vehicle parking locations, improve the space utilization of the charging station, and easily adapt to shared charging in multiple parking spaces, improving operational efficiency!


⚡ Full standard compatibility, one-stop charging solution

Whether it is CCS, CHAdeMO, GBT, AC or other mainstream charging standards, Superway charging piles are fully compatible and suitable for all kinds of new energy vehicles around the world, allowing electric car owners to charge without worry, truly achieving "one pile for all"!


Technical Specification




Charging type DC Charger
Output Power 240kW 300kW 360kW
Input voltage range 400VAC±15% (50Hz-60Hz)
Connector types 3P + N + PE
Max Input Current < 440A < 550A < 660A
Efficiency(max) >95% (peak)
Standby Power Consumption ＜50W*N (Plug)
Power factor (full load) > 0.99
THDi < 5%
DC output voltage 150Vdc-1000Vdc
DC plug Rated Current CCS1：0-300A (support dual-plug)
CCS2：0-300A (support dual-plug)
GB/T：0-250A (support dual-plug)
CHAdeMO：0-200A
custom communication 4G , Ethernet
User authentication App, RFID, MAC, Screen button
User interface 7" LCD touchscreen
Communication protocols OCPP 1.6J(Extendable to ocpp 2.0)
RFID Reader ISO 14443
Multilanguage system English, French, Spanish, Russian and Chinese
Software update Remote upgrade
Energy metering MID
Protection Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection, door Access, Grounding protection
Operational altitude Up to 2500 m
Operating temperature range -30°C to + 55°C (power de - rating applies)
Humidity 5 -95% Rh non- condensing
IP and IK rating IP-55 and IK-10(cabinet)/IK-8(touchscreen)

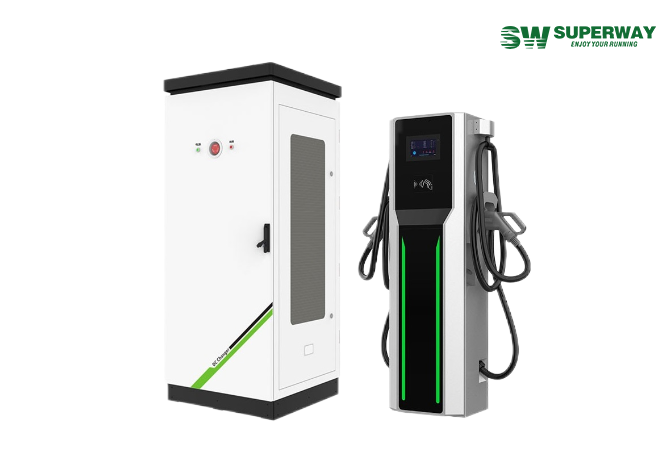

Dimensions (W x D x H) 820mm*820mm*1980mm(Power Cabinet)
604mm*307mm*1603mm(Dispenser)
Weight ≤ 600kg(Power Cabinet)
≤ 120kg(Dispenser)
Cable length 5 meters(8m/10m optional)
Product standard IEC 61851-1/23/24,IEC 62196-1/3,DIN 70121,ISO 15118
Certification TUV CE、TR25
