Superway All electric Bus Air Conditioner SEI series

Superway All electric Bus Air Conditioner SEI series


SEI Series Integrated Electric Bus Air Conditioner with battery thermal

management system, both provide Water PTC heater, meet the needs of

Battery heating at low ambient temp. while meeting various requirements of

Bus Air Conditioner and the Battery for cooling and heating


  • City Bus

  • Inter City Bus

  • Coach

  • School Bus

Superway All electric Bus Air Conditioner SEI series

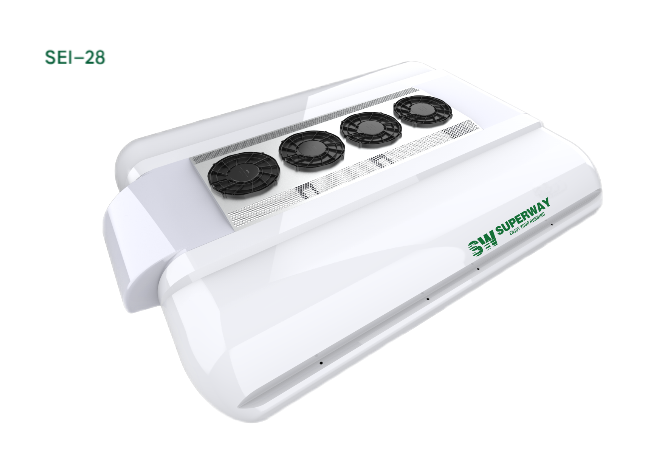

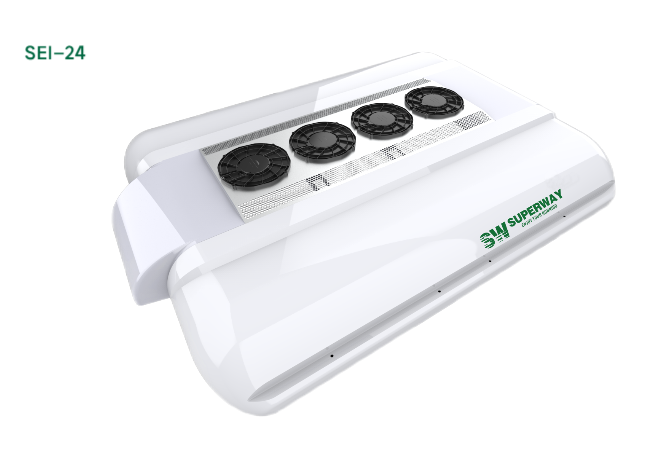

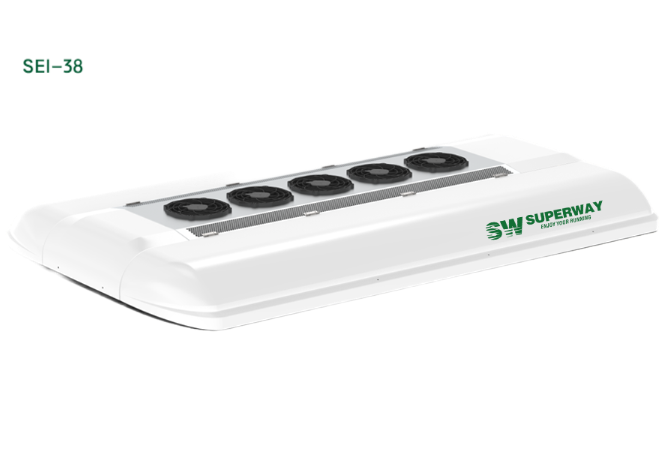

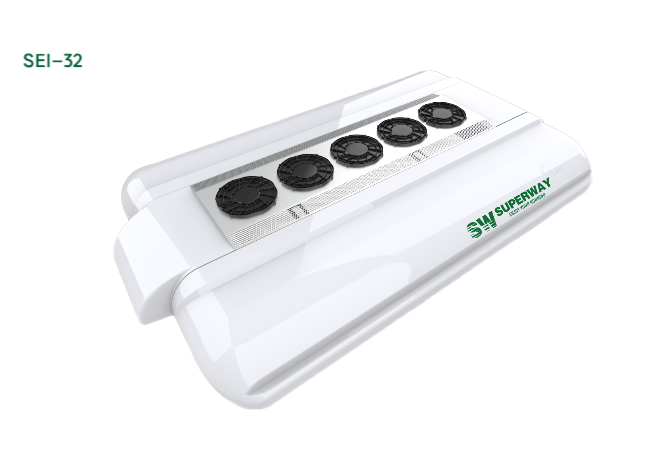

SEI series Electric Bus Air Conditioner include the Model: SEI-24, SEI-28, SEI-32, SEI-38. Cooling capacity from 24,000-38,000Kcal, heating capacity from 22,000-36,000Kcal, electric compressor is full DC system, working vaoltage from DC400 to 750V, application for 6-13M Electric Bus and Coach.


Technical Specification


Model SEI-24 SEI-28 SEI-32 SEI-38
Cooling Capacity(kcal/h) 24,000 28,000 32,000 38,000
Heating Capacity(kcal/h) 22,000 26,000 30,000 36,000
Battery cooling capacity -driving (kw) 5kw 5kw 5kw 5kw
Battery cooling capacity -charing(kw) 8kw 8kw 8kw 8kw
Evaporator Airflow(m³/h) 4000(4pcs) 6000(6pcs) 6000(6pcs) 8000(8Pcs)
Condenser Airflow(m³/h) 8000(4pcs) 8000(4pcs) 10000(5pcs) 10000(5pcs)
Refrigerant R407C R407C R407C R407C
Weight (kg) 255 285 315 335
Size(mm) LxWxH 2750*2000*260 3000*2000*260 3250*2000*260 3250*2000*260
Application 7.5m~9m 9m~10m 10m-12m 12m-13m

SEI Series Feature


Intergrated system

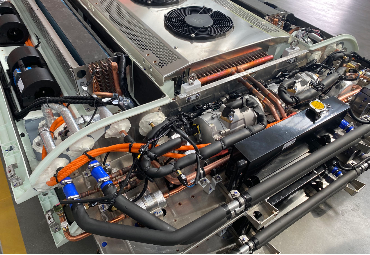

SEI Integrated Electirc Bus Air Conditioner system, BTMS intergrated inside the roof top, it is a liquid-cooled battery configuration

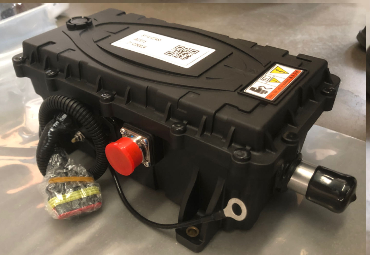

Water PTC heater
 SEI series provide the Water PTC heater, meet the needs of Battery Heating demand at Low ambient temperature

Reduce weight and cost

SEI series is Intergrated the Bus air conditioner and Battery cooling system, roof top share the compressor and condenser, cost reduce 30%, weight reduce 20%

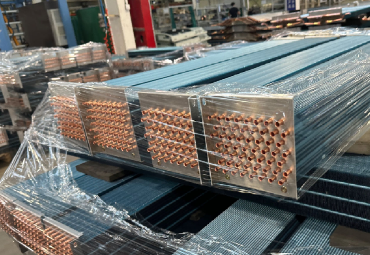

Copper tube and aluminum fin
Condenser and Evaporator both Copper tube and Aluminum fin, more durable in humid and high temperature environments, reducing the risk of leakage , long service life

Reliable capacity

Two-way or four-way electronic expansion valve is precisely  regulated, coupled with PlD intelligent control, andevenly distributes the cooling capacity inside the vehicle and at battery side

Good working condition

 The requirements of Bus air conditioner heating and Battery cooling in low and high temperature environment are both meet
