In the era of new energy travel, the reliability and convenience of charging infrastructure directly affect the user experience. SUPERWAY AC charging piles provide efficient, safe and stable charging solutions for new energy vehicle owners with their excellent performance and flexible installation methods.
☀ Multi-scenario adaptation, flexible installation

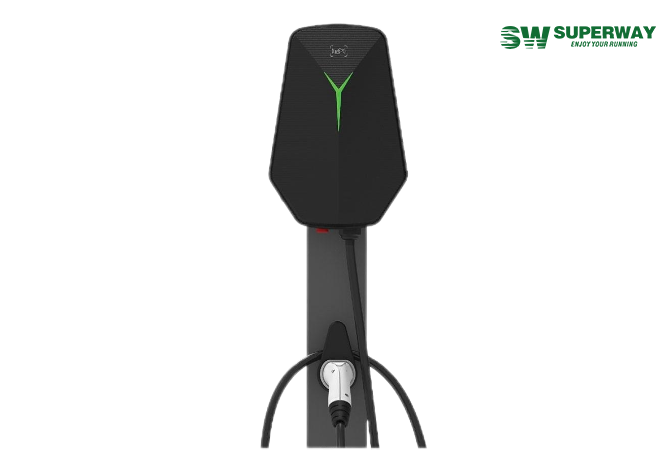

Superway AC charging piles can meet two modes: single pole installation and wall installation. They are suitable for various scenarios such as homes, parking lots of enterprises and institutions, communities, supermarkets, public parking lots, etc. Whether it is an individual user or a commercial operation site, Superway charging piles can be easily integrated to achieve efficient deployment.
☀ Compatible with multiple models, worry-free charging
Adopting a charging interface that meets international standards, Superway AC charging piles are compatible with a variety of new energy vehicle models, ensuring that vehicles of different brands can be charged stably, truly achieving "one pile for multiple uses", making charging more convenient and efficient.
☀ Intelligent and efficient, safe protection
Superway AC charging piles have an intelligent control system that supports remote monitoring, scheduled charging, abnormal alarms and other functions, allowing users to grasp the charging status at any time. At the same time, the device has built-in multiple safety protection mechanisms such as over-temperature, over-current, and short circuit to ensure that the charging process is stable and reliable, providing users with peace of mind.
☀ Energy saving and environmental protection, helping carbon neutrality
Using high-efficiency charging modules, Superway AC charging piles not only optimize charging efficiency, but also reduce energy consumption, which is in line with the trend of green and low-carbon development and contributes to the development of the new energy industry.
| Charging type | AC Charger | ||
| Output Power | 7kW | 11kW | 22kW |
| Input voltage range | 230VAC±15% | 400VAC±15% | 400VAC±15% |
| Frequency | 50Hz-60Hz | ||
| Connector types | L + N + PE | 3P + N + PE | 3P + N + PE |
| Max Input Current | < 32A | < 16A | < 32A |
| Standby Power Consumption | < 10W | ||
| Power factor (full load) | > 0.99 | ||
| Custom communication | 4G, Ethernet, WiFi, Bluetooth | ||
| User authentication | App, RFID | ||
| Communication protocols | OCPP 1.6J(Extendable to ocpp 2.0) | ||
| RFID Reader | ISO 14443 | ||
| Software update | Remote upgrade | ||
| Charging connector | 1 | ||
| Earth leakage protection | Type A+DC6mA | ||
| Protection | Over Voltage, Over Current, Over Power, Over temperature, Under Voltage, short-circuit, Emergency stop protection, Residual current detection, surge protection | ||
| Operational altitude | Up to 2500 m | ||
| Operating temperature range | -30°C to + 55°C (power de - rating applies) | ||
| Humidity | 5 -95% Rh non- condensing | ||
| IP and IK rating | IP-65 and IK-08 | ||
| Dimensions (W x D x H) | 277.5mm*135mm*408mm | ||
| Weight | ≤7kg | ||
| Cable length | 5 meters(8m/10m optional) | ||
| Product standard | IEC 61851-1, IEC 61851-21-2, IEC 61851-22, IEC 62196-2/3 | ||
| certification | TUV CE, TR25 | ||
| Pole-Mounted supporter | H-1360mm | ||
